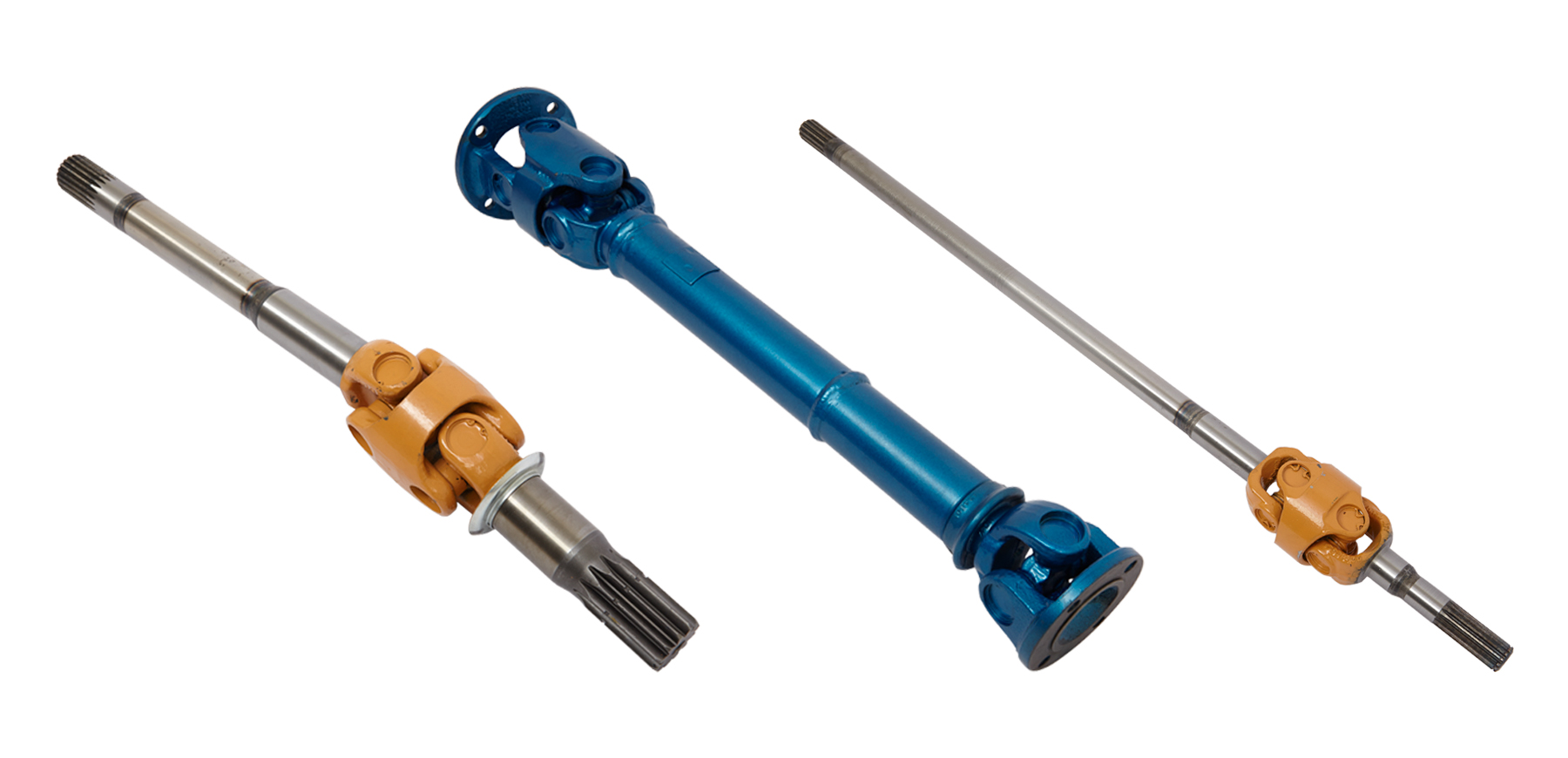

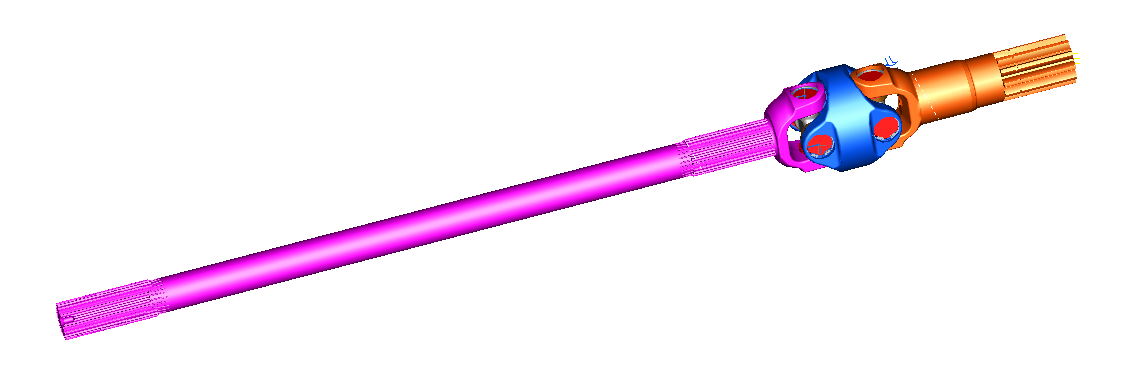

Our double cardan shafts can withstand torque upto 2300Nm and provide deflection angles upto 55 degrees.
We have developed double cardan shafts for use in the automotive, agricultural and construction sectors. We can supply standard (male) shafts or with integrated pinion (sun gear).
Our shafts are designed to withstand extreme working conditions and allow high continuous angles at high operating speeds.
Our shafts are characterised by:
- High torque capacity
- Extended service life
- Superior sealing and lubrication
- Use of high-quality, tempered steel types with optimised heat treatment
- Large deflection angles upto 55 degrees
The most common applications for our double cardan shafts include the following machine types:
- Agricultural tractors
- Backhoe loaders
- Telescoping handlers
- 4WD SUVs
- All-terrain lift trucks
- Wheeled excavators
- Cement mixers
|SERIES||TORQUE CAPACITY (Nm)||SWING DIA (mm)|
|DYNAMIC TORQUE||FUNCTIONAL LIMIT TORQUE|
