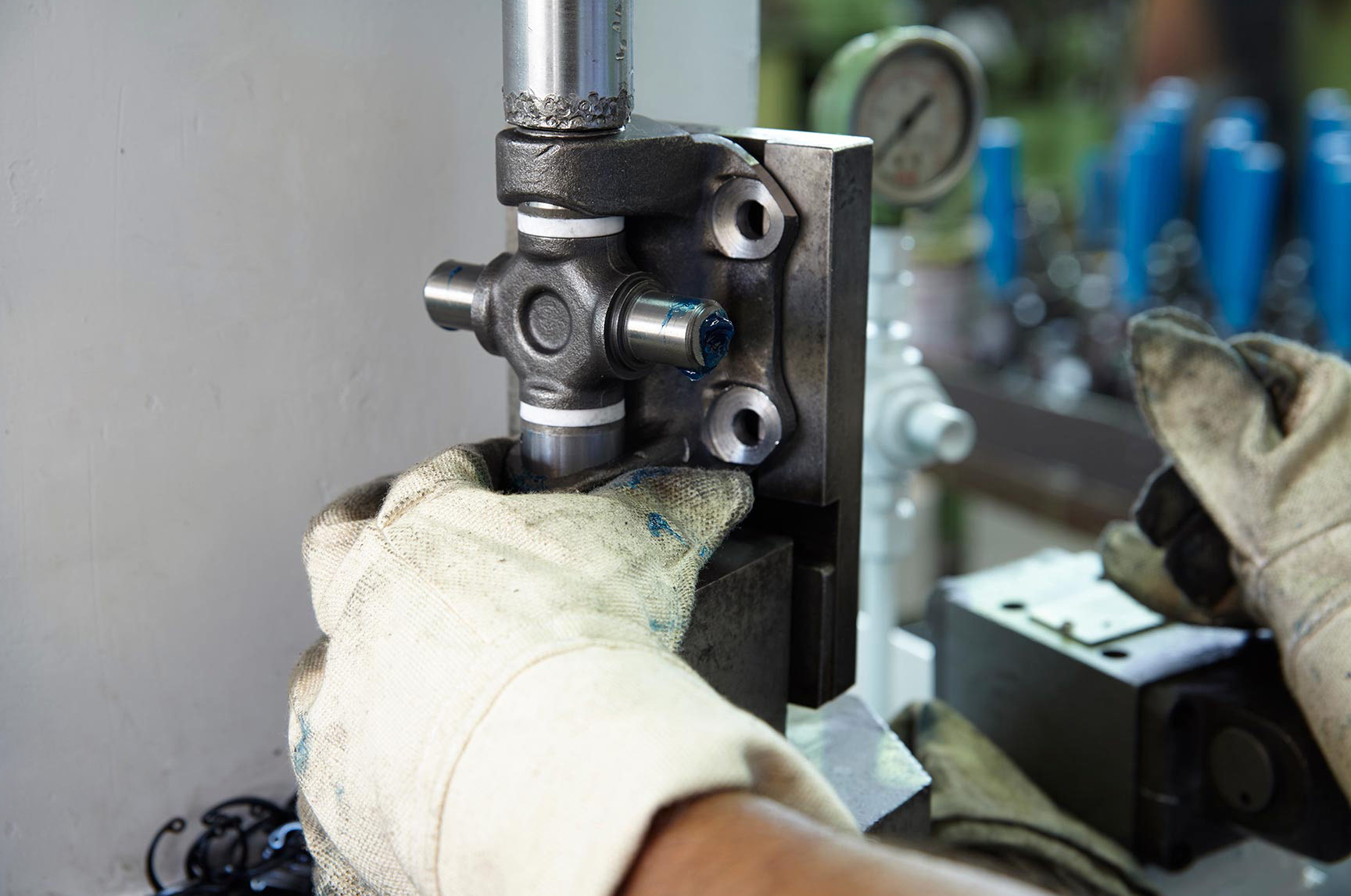

Universal Joints

We manufacture an extensive range of universal joint kits with torque capacities ranging from 1000 Nm to 15000 Nm.

Universal joints are the weakest link in driveshaft design and therefore their durability is of paramount importance in vehicle performance.

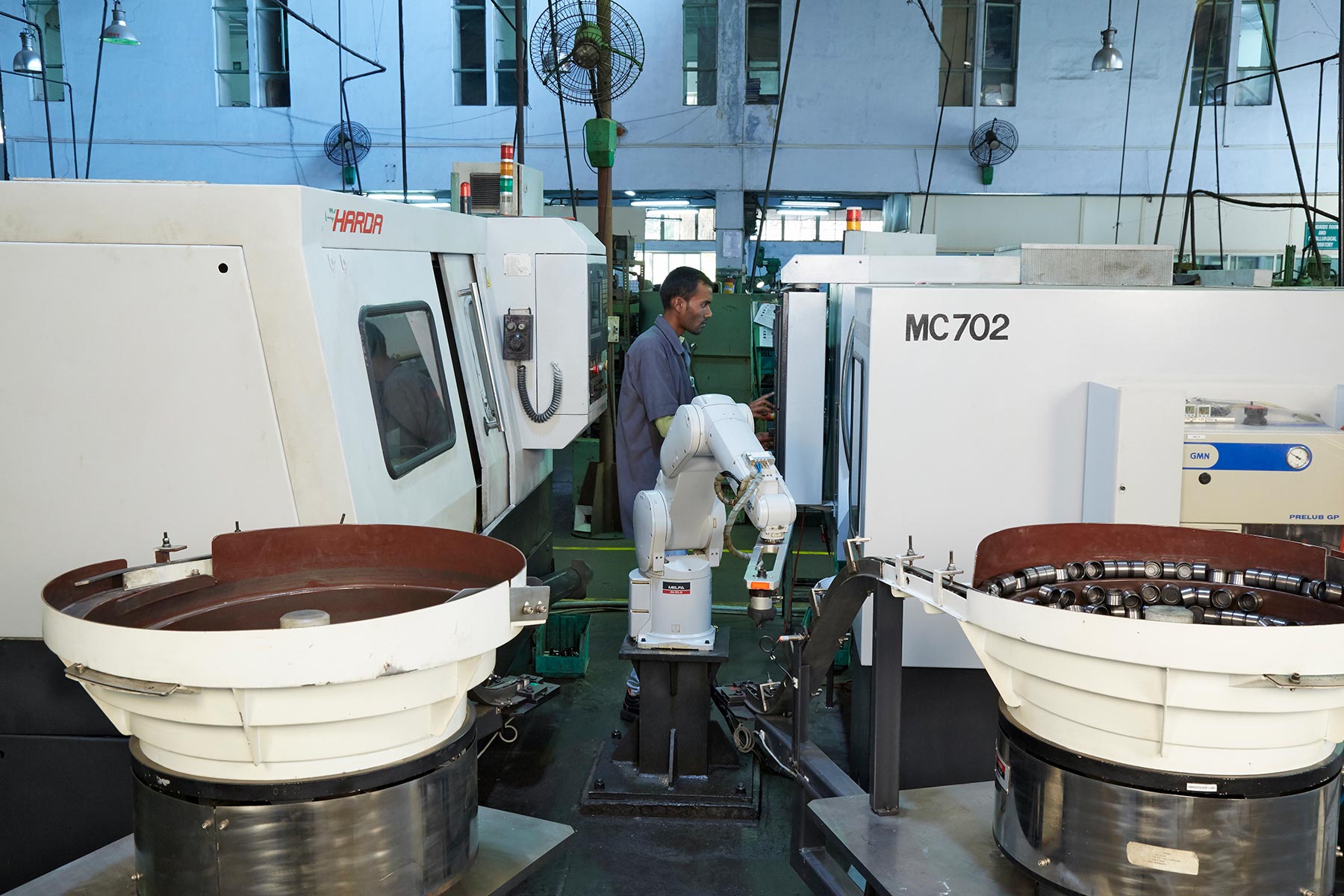

  • We have set up a dedicated line for universal joint manufacturing with carefully calibrated state of the art machines.
  • We offer reinforced designs for extended life and enhanced torque carrying capacities.

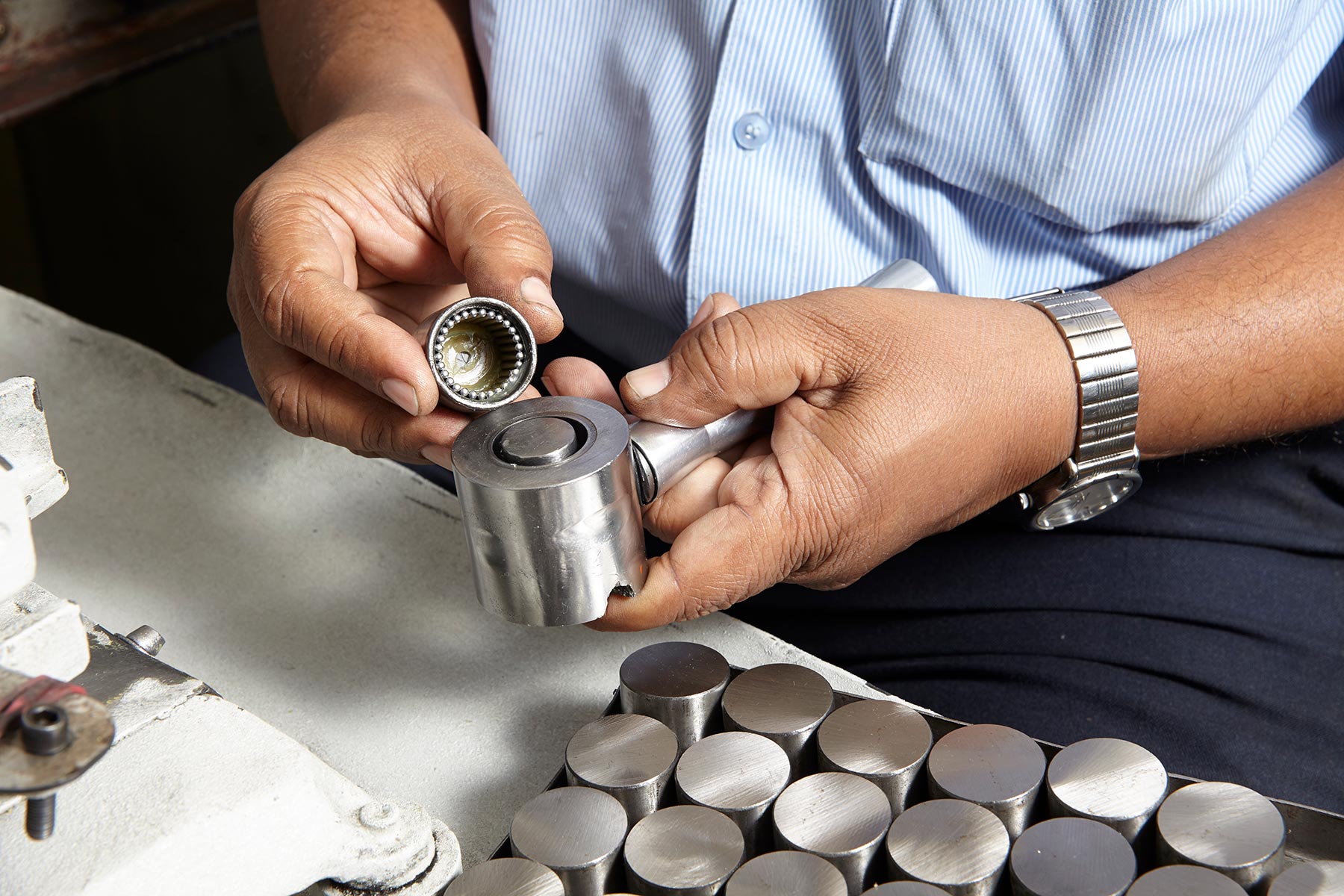

  • Our universal joints use the highest quality needle bearings to ensure maximum load carrying capacity and efficiency.
  • We employ enhanced sealing methods to ensure the bearings remain free from dirt and dust.
  • Our universal joint kits are available in greasable and maintenance free (lube for life) variants.
SERIES BEARING OD X UJ KIT SPAN (mm) TORQUE CAPACITY (Nm)
STATIC DYNAMIC
1140 23.8 x 61.3 1000 210
1260 27 x 81.8 1505 375
1310 27 x 81.8 3030 460
1350 30.2 x 92.1 3120 650
1410 30.2 x 106.3 3835 840
1480 34.9 x 106.3 4282 910
1510 39.7 x 115.9 5600 1070
1550 34.9 x 126.1 5885 1145
1600 47.6 x 134.9 8245 1665
1710 49.2 x 154.7 14000 3075
