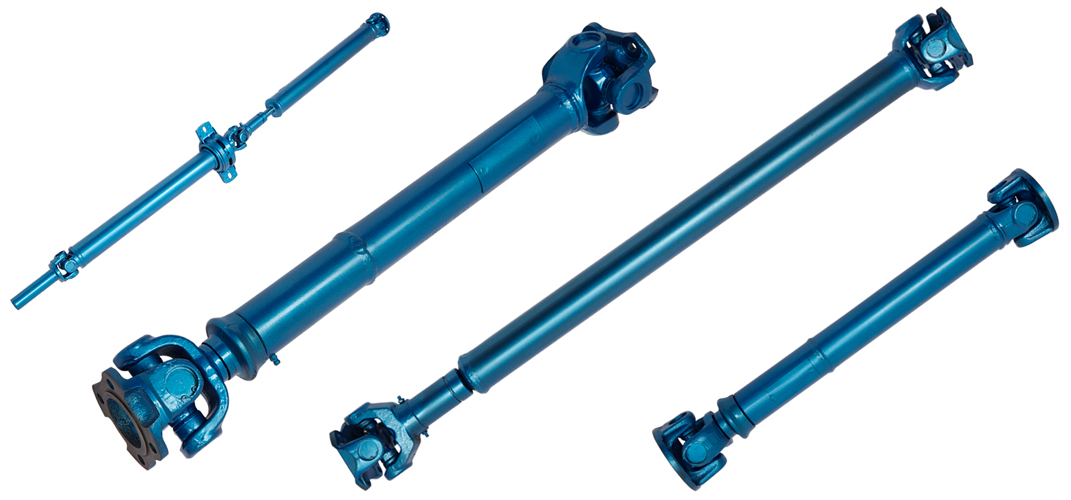

Automotive Driveshafts

Automotive Driveshafts

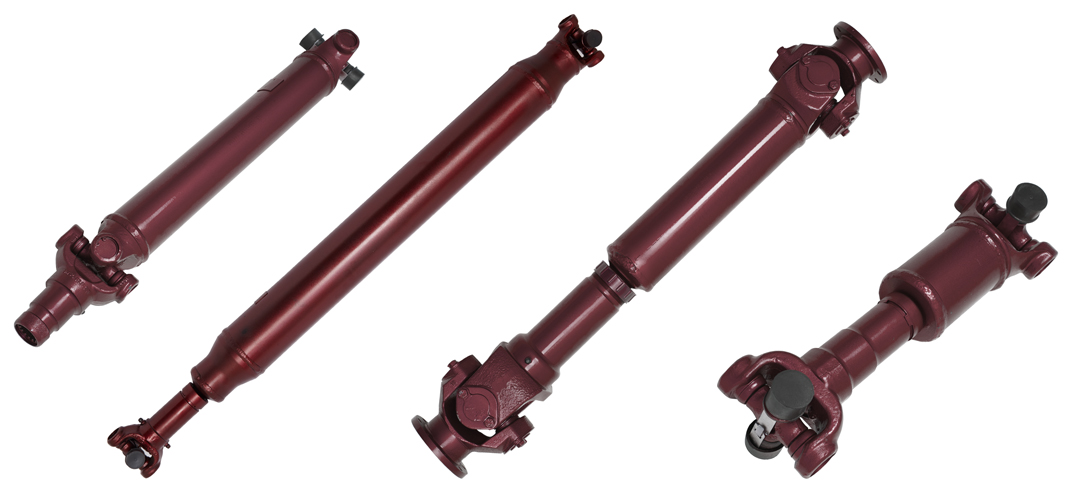

Off-highway Driveshafts

Off-highway Driveshafts

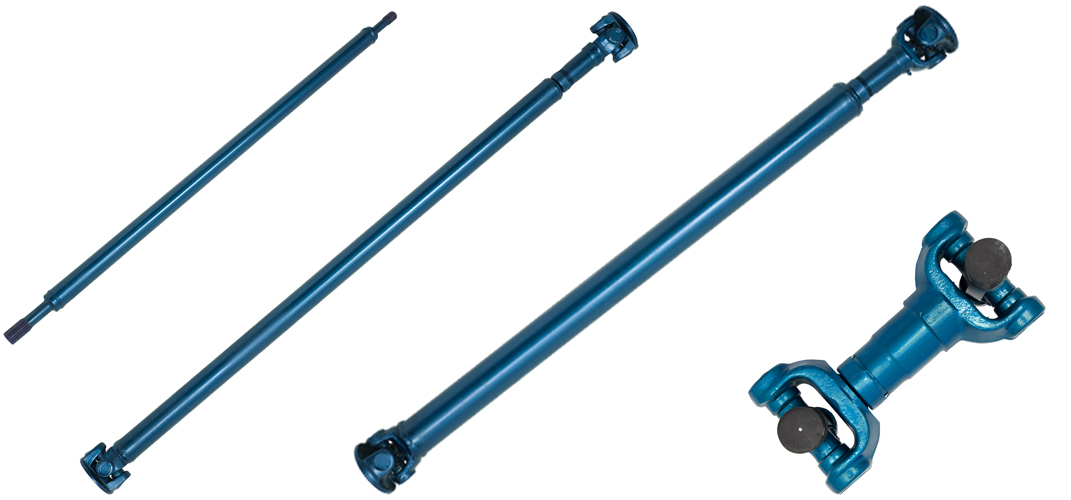

Agricultural Driveshafts

Agricultural Driveshafts

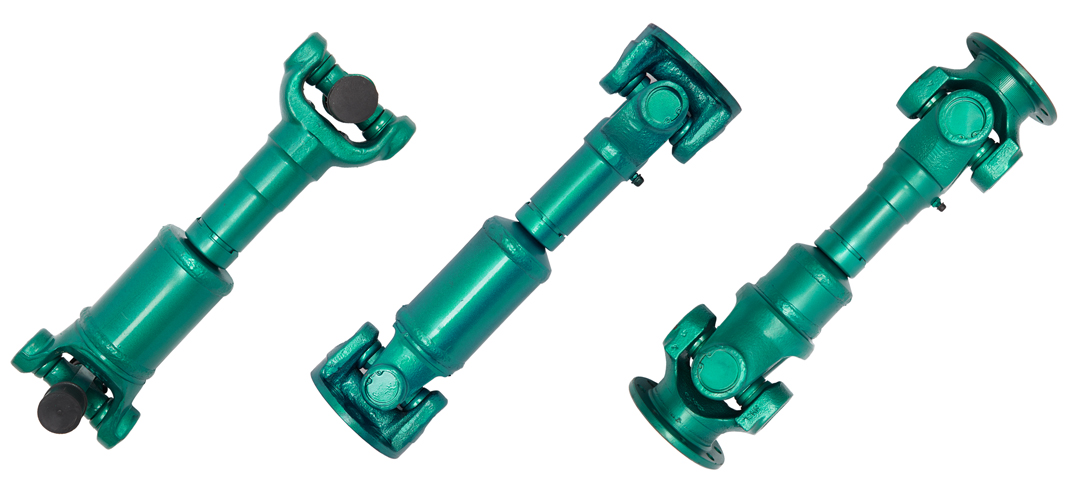

Industrial Driveshafts

Industrial Driveshafts

Propeller Shafts

We manufacture propeller shafts for automotive, agricultural, off-highway and industrial applications.

Our shafts are built to withstand torque requirements ranging from 1000Nm to 15000Nm. They are capable of withstanding severe service loads and angular movement.

Our shafts are precisely balanced in order to guarantee performance, durability and minimum levels of Noise Vibration Harshness (NVH). Our shafts incorporate the following features resulting in superior performance and maximum efficiency:

  • ability to withstand dynamic load variations
  • large deflection angles
  • lightweight design, versatile flange connections, low rotational diameter of joints
  • slip design has low-backlash and a wear-resistant profile minimising axial forces

Our shafts come in the following variants:

Universal joint variants

  • Greasable
  • Maintenance free (lube for life)

End fitment variants

  • SAE
  • DIN
  • T-serrated

We can customise shafts to incorporate special requirements including special flange connections and seal assemblies. We also manufacture mechanics series shafts.

We offer the following series of propeller shafts:

SERIES TORQUE CAPACITY (Nm) SWING DIA (mm) FLANGE PCD (mm)
DYNAMIC TORQUE FUNCTIONAL LIMIT TORQUE
1140 570 1140 76.2 57.15
1260 770 1540 95.3 60.325
1310 1250 2500 96.8 79.375
1350 1600 3200 107.2 69.85
1410 2040 4080 121.4 69.85
1480 2500 5000 124.7 100.0
1510 3120 6240 136.5 101.5
1550 3300 6600 146.0 95.25
1600 4050 8100 173.0 168.25
1710 7500 15000 200.0 168.25
